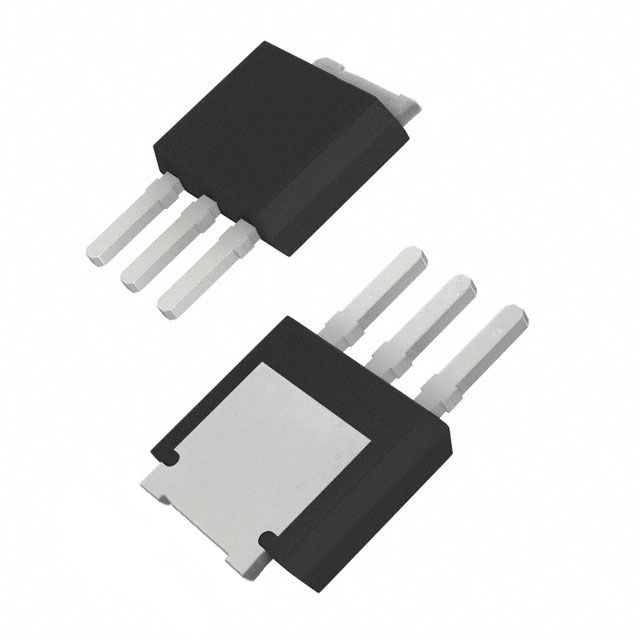

NTD4806N-35G
- Manufacturer : ON Semiconductor
Packaging : Tube
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 11.3A (Ta), 79A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 11.5V
Rds On (Max) @ Id, Vgs : 6 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2142pF @ 12V
Power Dissipation (Max) : 1.4W (Ta), 68W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Stub Leads, IPak
