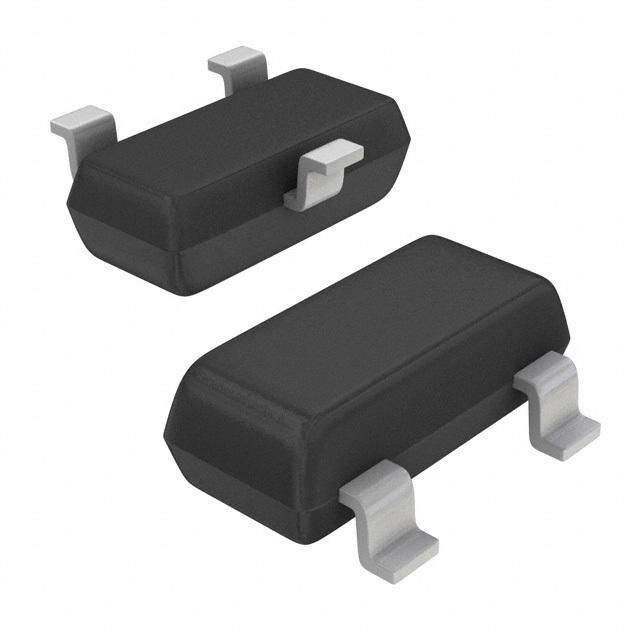

NTR4502PT3G
- Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 1.13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 200 mOhm @ 1.95A, 10V
Vgs(th) (Max) @ Id : 3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 15V
Power Dissipation (Max) : 400mW (Tj)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
