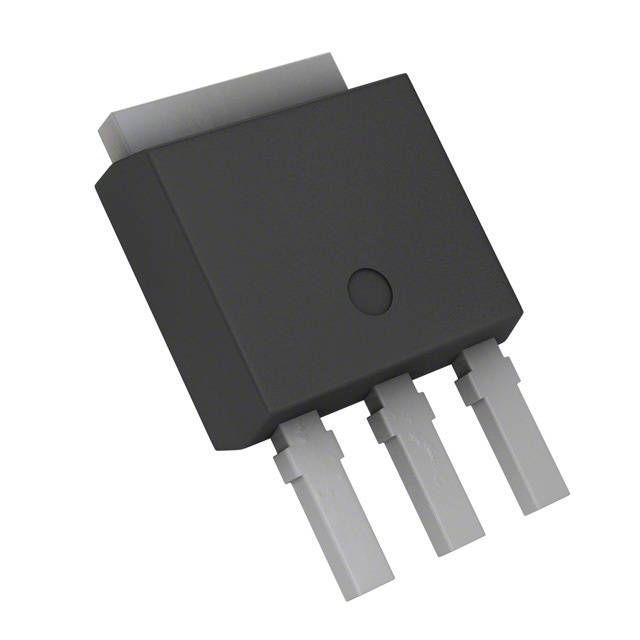

NTD60N02R-35G
- Manufacturer : ON Semiconductor
Packaging : Tube
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 8.5A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 10.5 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 14nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1330pF @ 20V
Power Dissipation (Max) : 1.25W (Ta), 58W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Stub Leads, IPak
型號 |
品牌 | 封裝 | 批號 | 查看 | |
|---|---|---|---|---|---|
| NCP5106APG | ON | 8-PDIP | New | 詳細 | |
| PN2907ARLRA | ON | TO-92-3 | New | 詳細 | |
| N24C02UDTG | ON | US8 | New | 詳細 | |
| 74VHC74MTC | ON | New | 詳細 | ||
| FDMF6706B | ON | 40-PQFN (6x6) | New | 詳細 | |
| FMB5551 | ON | SuperSOT?-6 | New | 詳細 | |
| MJE18004 | ON | TO-220AB | New | 詳細 | |
| 5LP01M-TL-E | ON | 3-MCP | New | 詳細 | |
| NCP2993FCT2GEVB | ON | New | 詳細 | ||
| MPS2222ARLRA | ON | TO-92-3 | New | 詳細 | |
| NZ9F12VT5G | ON | SOD-923 | New | 詳細 | |
| 74LCX540MSA | ON | 20-SSOP | New | 詳細 | |
| BC373ZL1G | ON | TO-92-3 | New | 詳細 | |
| NC7SV17FHX | ON | 6-MicroPak2? | New | 詳細 | |
| MV5353 | ON | T-1 3/4 | New | 詳細 | |
| 74F552QC | ON | 28-PLCC (11.5x11.5) | New | 詳細 | |
| NC7SP126FHX | ON | 6-MicroPak2? | New | 詳細 | |
| NCV551SN30T1G | ON | 5-TSOP | New | 詳細 | |
| NTLUS3A39PZCTAG | ON | 6-UDFN (1.6x1.6) | New | 詳細 | |
| 2N3906_J05Z | ON | TO-92-3 | New | 詳細 |
