FDC610PZ
- Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench?
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 42 mOhm @ 4.9A, 10V
Vgs(th) (Max) @ Id : 3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±25V
Input Capacitance (Ciss) (Max) @ Vds : 1005pF @ 15V
Power Dissipation (Max) : 1.6W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

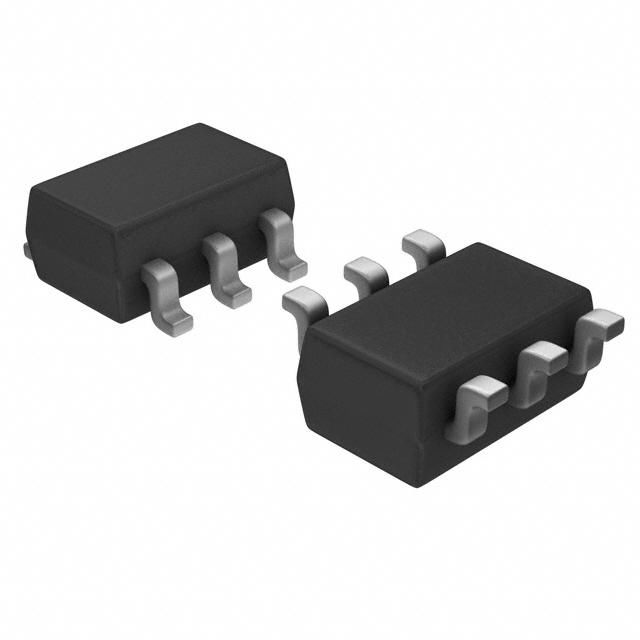

Supplier Device Package : SuperSOT?-6
Package / Case : SOT-23-6 Thin, TSOT-23-6
型號 |
品牌 | 封裝 | 批號 | 查看 | |
|---|---|---|---|---|---|
| BFL4001-1EX | ON | TO-220-3 Fullpack/TO-220F-3SG | New | 詳細 | |
| BZX55C51_T50R | ON | DO-35 | New | 詳細 | |
| MTD20P03HDLT4 | ON | DPAK | New | 詳細 | |
| LB1909MCGEVB | ON | New | 詳細 | ||
| LM385Z-1.2RA | ON | TO-92-3 | New | 詳細 | |
| FAN7535M | ON | 24-SOP | New | 詳細 | |
| SZNUP4016P5T5G | ON | SOT-953 | New | 詳細 | |
| 2N3906_J05Z | ON | TO-92-3 | New | 詳細 | |
| NTTFS4C56NTWG | ON | 8-WDFN (3.3x3.3) | New | 詳細 | |
| LM431BIMX | ON | 8-SOIC | New | 詳細 | |
| DAP202U | ON | SC-70-3 (SOT323) | New | 詳細 | |
| KA3844B | ON | 8-DIP | New | 詳細 | |
| MC74LCX574DTR2 | ON | New | 詳細 | ||
| MMBT4126 | ON | SOT-23-3 | New | 詳細 | |
| LE24C043M-TLM-E | ON | 8-MFP | New | 詳細 | |
| NRVB0540T3G | ON | SOD-123 | New | 詳細 | |
| NB7LQ572MNG | ON | 32-QFN (5x5) | New | 詳細 | |
| MCR22-6RLRPG | ON | TO-92-3 | New | 詳細 | |
| MC10EP139DWR2G | ON | 20-SOIC | New | 詳細 | |
| NCP1392LCDTVGEVB | ON | New | 詳細 |
